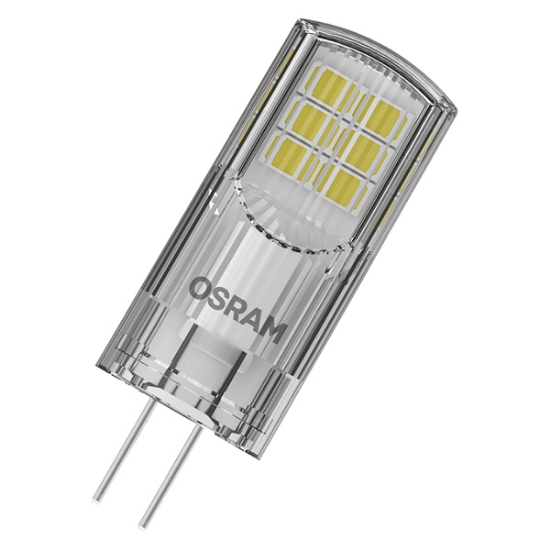

LEDVANCE PARATHOM LED PIN 12V P PIN 2.6W 2700K G4

LEDVANCE PARATHOM LED PIN 12V P PIN 2.6W 2700K G4

Product benefits

• Variable use at Direct Current and Alternating Current
• Good all-around light emission
• Ideal for decorative and free-burning applications
• Long lifetime of up to 15,000 h
• Four year guarantee
• Lower energy consumption than incandescent or halogen lamps

Areas of application

• Decorative applications
• Atmospheric accent lighting throughout the home
• Shops, hotels and restaurants
• Outdoor use in suitable outdoor luminaires only

Product features

• Compatible with many common conventional and electronic control gears (see also compatibility list)
• LED alternative to low voltage halogen lamps
• Base: G4

Electrical data

• Nominal wattage 2.6 W
• Construction wattage 2.60 W
• Nominal voltage 12 V
• Operating mode 12V AC/DC
• Claimed equiv. conventional lamp power 30 W
• Nominal current 350 mA
• Type of current AC/DC
• Inrush current 12.3 A
• Max. lamp number on MCB B10 A 48
• Max. lamp number on MCB B16 A 61
• Total harmonic distortion < 120 %
• Power factor λ > 0.50

Photometrical data

• Luminous flux 300 lm
• Nominal useful luminous flux 90° 300 lm
• Luminous efficacy 115 lm/W
• Lumen main.fact.at end of nom.life time 0.70
• Light color (designation) Warm White
• Color temperature 2700 K
• Color rendering index Ra 80
• Light color 827
• Standard deviation of color matching ≤6 sdcm
• Rated LLMF at 6,000 h 0.80
• Light technical data
• Beam angle 320 °
• Warm-up time (60 %) ‹ 0.50 s
• Starting time < 0.5 s

Dimensions & Weight

• Overall length 40.00 mm
• Diameter 14,0 mm
• Maximum diameter 14 mm
• Product weight 4.4 g

Temperatures & operating conditions

• Ambient temperature range -20…+40 °C
• Maximum temperature at tc test point 105 °C

Lifespan

• Number of switching cycles 100000
• Lumen maintenance at end of service lifetime 0.70
• Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

• Base (standard designation) G4
• Mercury content 0.0 mg
• Mercury-free Yes

Capabilities

• Dimmable No
