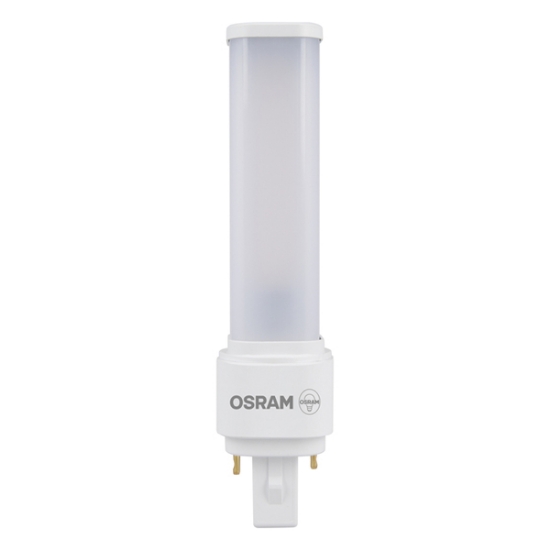

LEDVANCE OSRAM Dulux LED D EM & AC Mains D18 7W 840 G24D-2 LED Lamp (Sold as 10)

LEDVANCE OSRAM Dulux LED D EM & AC Mains D18 7W 840 G24D-2 LED Lamp (Sold as 10)

Product benefits

• Easy installation
• Low energy consumption
• Easy relamping thanks to compact design
• Operation directly on 230 V AC mains possible

Areas of application

• Supermarkets and department stores
• Walkways and corridors
• Hotels, restaurants

Product features

• LED replacement for conventional compact fluorescent lamps for use in CCG luminaires or on AC mains
• Rotatable base around its longitudinal axis (± 90°)
• Lifetime up to 30,000 h
• Single-ended two-pin plug-in G24d base
• Type of protection: IP20
• Mercury-free lamps

Electrical data

• Nominal wattage 7 W
• Construction wattage 7.00 W
• Nominal voltage 220…240 V
• Operating mode Conventional control gear (CCG), AC
• Claimed equiv. conventional lamp power 18 W
• Nominal current 32 mA
• Type of current AC
• Inrush current 14.4 A
• Suitable for DC input Yes
• Input voltage DC 186…260 V 1)
• Operating frequency 50/60 Hz
• Mains frequency 50/60 Hz
• Max. lamp number on MCB B10 A 41
• Max. lamp number on MCB B10 A - CCG without compensation 125
• Max. lamp number on MCB B10 A - CCG with compensation 9
• Max. lamp number on MCB B16 A 51
• Max. lamp number on MCB B16 A - CCG without compensation 176
• Max. lamp number on MCB B16 A - CCG with compensation 11
• Total harmonic distortion ≤ 30 %
• Power factor λ > 0.90
• 1) Permitted voltage range

Photometrical data

• Luminous flux 770 lm
• Nominal useful luminous flux 90° 870 lm
• Luminous efficacy 110 lm/W
• Lumen main.fact.at end of nom.life time 0.70
• Light color (designation) Cool White
• Color temperature 4000 K
• Color rendering index Ra 80
• Light color 840
• Standard deviation of color matching ≤6 sdcm
• Rated LLMF at 6,000 h 0.90
• Flickering metric (Pst LM) 1.0
• Stroboscope effect metric (SVM) 0.4
• Light technical data
• Beam angle 120 °
• Warm-up time (60 %) ‹ 0.50 s
• Starting time < 0.5 s

Dimensions & Weight

• Overall length 148.00 mm
• Diameter 35.00 mm
• Tube diameter 27,0 mm
• Maximum diameter 38 mm
• Product weight 52.00 g

Temperatures & operating conditions

• Ambient temperature range -20…+45 °C 1)
• Maximum temperature at tc test point 73 °C
• 1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire

Lifespan

• Lifespan L70/B50 at 25 °C 30000 h
• Number of switching cycles 200000
• Lumen maintenance at end of service lifetime 0.70
• Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

• Base (standard designation) G24d-2
• Mercury content 0.0 mg
• Mercury-free Yes
• Design / version Frosted

Capabilities

• Dimmable No
