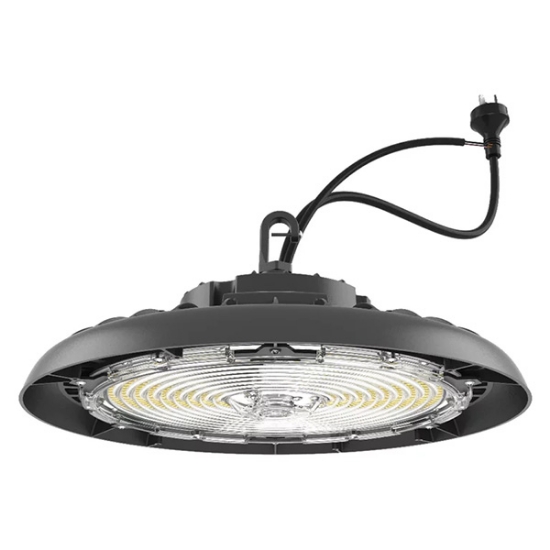

LEDVANCE LED Tri Colour Multi Wattage Highbay 60W 80W 100W VS1

LEDVANCE LED Tri Colour Multi Wattage Highbay 125W, 150W, 200W VS1

Product benefits

• UV resistant PC lens offer a durable service

Areas of application

• Industrial and commercial halls
• Warehouses
• Public areas (stations, stadiums)
• Airports

Product features

• High luminous efficacy: up to 150 lm/W
• DALI version available
• Power factor: ≥ 0.9
• Color rendering index Ra: ≥ 80
• Type of protection: IP65
• Impact resistance: IK08
• Long lifetime up to 50,000 h
• Die-cast aluminum housing

Electrical Data

• Nominal wattage 100.00 W
• Nominal voltage 100…277 V
• Mains frequency 50…60 Hz
• Protection class I

Photometrical data

• Luminous flux 14000 lm
• Luminous efficacy 140 lm/W
• Color rendering index Ra ≥80
• Beam angle 90 °

Dimensions and Weight

• Diameter 280.00 mm
• Height 146.00 mm
• Product weight 2235.00 g

Materials and Colors

• Product color Black
• Housing color Black
• Mercury content 0.0 mg

Application and Mounting

• Type of protection IP65
• Dimmable Yes
• Type of dimming 1-10V
• Replaceable light source No
